10mm Cast Acrylic Sheet – Thick Plexiglass Panels for Heavy-Duty Applications
Brand: Alands
Material: Cast Acrylic (100% Virgin PMMA)
Size: 1220 × 2440 mm (custom sizes available)
Thickness: 10mm (custom sizes available)
Origin: Jinan, Shandong, China
Payment: T/T, L/C, Western Union, Trade Assurance

(MOQ:1000KG)

Product Manual
Product Manual
Describe
Detail

内页 (3-1).jpg

Product Introduction – 10mm PMMA Sheets for Structural and Industrial Use

The 10mm cast acrylic sheet is a high-strength, optical-grade plastic panel designed for demanding environments that require greater impact resistance, structural rigidity, and long-term durability. Manufactured via the casting process using 100% virgin PMMA, this thick plexiglass sheet delivers exceptional clarity and machining stability, making it ideal for protective barriers, machine enclosures, display structures, and architectural features.

Available in full-size sheets or custom-cut dimensions, and prepared for bulk export with professional packaging.


Key Performance Benefits – What Makes 10mm Acrylic Sheets Industrial-Grade?

  • High Structural Rigidity
    The 10mm thickness offers significant resistance to bending, warping, and vibration—ideal for panels under mechanical stress.

  • Superior Impact Resistance
    10x stronger than glass at the same thickness, suitable for barrier walls and safety shields.

  • Excellent Clarity & Light Transmission
    Even at 10mm, light transmittance remains above 90%, maintaining a clean, glass-like appearance.

  • Weatherable & UV-Stable
    Won’t yellow or become brittle after extended outdoor exposure—perfect for long-term installations.

  • Fabrication Friendly
    Supports mechanical cutting and CO₂ laser cutting with smooth edge results and minimal deformation.

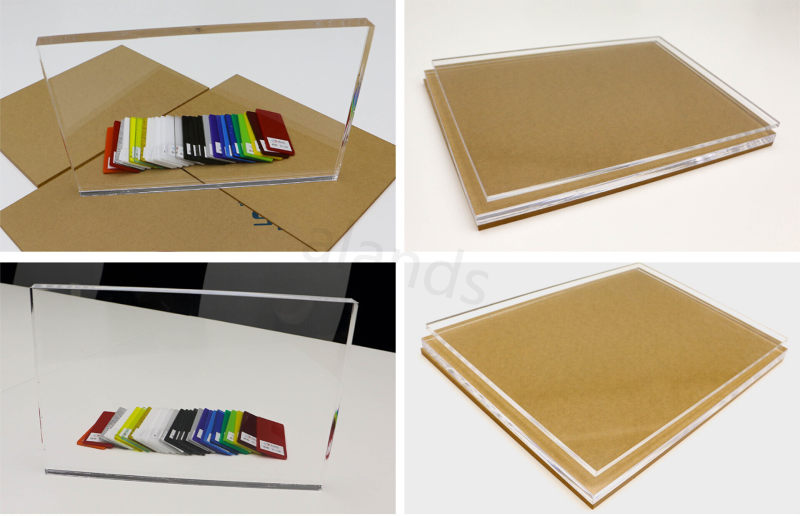

Acrylic sheet pictures (23).jpg


Technical Specifications – 10mm Acrylic Sheet Details

AttributeDescription
Thickness10mm
Material TypeCast Acrylic (PMMA)
Standard Panel Size1220 × 2440mm
Custom Size CuttingAvailable upon request
Colors AvailableClear, Opal White, Black, Tinted Grey, Bronze
Surface FinishHigh gloss (double side), matte optional
ProtectionPE protective film (double side)
Thickness Tolerance±0.3mm
Cutting Tolerance±1.0mm (factory cutting)
Export PackagingFoam + kraft + pallet or wood crate

Recommended Applications – Where 10mm Acrylic Excels

Industrial Protection

  • Machine safety guards

  • Equipment viewing panels

  • Transparent shields for mechanical systems

Retail & Public Safety Barriers

  • Freestanding sneeze guards

  • Transaction windows

  • Heavy-duty partition systems

Architectural & Interior Construction

  • Wall panels

  • Furniture design components

  • Modern balustrade infill or window replacements

Signage & Displays

  • Dimensional logos

  • Lighted boxes with edge durability

  • Large-format structural signs

Acrylic sheet pictures (13).jpg


Processing Options – How We Cut and Prepare 10mm Plexiglass

Mechanical Cutting (Saw)

  • Ideal for square/rectangular components

  • Smooth edge with minimal vibration

  • Edge finishing available upon request

Laser Cutting (CO₂)

  • Supports precision curves and internal cuts

  • Delivers flame-polished edge finish

  • Slower feed rate required due to material thickness

Note: We currently do not provide thermoforming, polishing, or CNC engraving services.


Export & Delivery Info – Global Shipping for Bulk Acrylic Sheets

  • MOQ: 20–25 sheets (10mm) per export pallet

  • Lead Time: 8–14 business days depending on processing

  • Packaging: Standard with PE film, kraft wrap, foam corners, pallet or wood crate

  • Shipping Terms: EXW, FOB, CIF from main China ports

  • Documents Provided: CO, Form A/E, MSDS, RoHS, REACH, commercial invoice, packing list

Acrylic sheet packaging images (3).jpg


FAQs – Common Questions About 10mm Cast Acrylic Panels

Is 10mm thick enough for structural partitions or doors?
Yes, for light- to medium-load indoor and outdoor partitions, 10mm cast acrylic is strong and safe. It is widely used in public installations and enclosed machinery.

Can I drill or mount 10mm acrylic sheets?
Yes. 10mm offers sufficient thickness for drilling, screwing, and mounting without cracking when handled correctly.

Does 10mm acrylic block UV light?
Yes. Standard cast acrylic blocks over 90% of UV rays and is suitable for UV-protected applications.

Can the sheet be shipped pre-cut or with rounded corners?
Yes. Just send your cut list or CAD file; we’ll prepare your order accordingly using saw or laser processing.

Request A Quote! We'll respond as soon as possible(within 12 hours) MOQ:1000KG
